Emissions analysis
Emissions analysis
MIR 9000e
- Certified by TÜV for QAL3 (Quality Assurance Level 3, mandatory in EU) according to EN 14181 / EN 15267-3 standards (pending official publication on QAL1.de).
- Superior metrological performances for the simultaneous multi-gas measurement of: NOx, SO2, CO, O2, residual H2O, CO2, CH4 and N2O (greenhouse gases)
- Insensitive to T° variations in the range +5° to +40°C
- Smart analyzer including AMS control functionalities
- Highly accurate, excellent stability, economical, easy and reduced maintenance

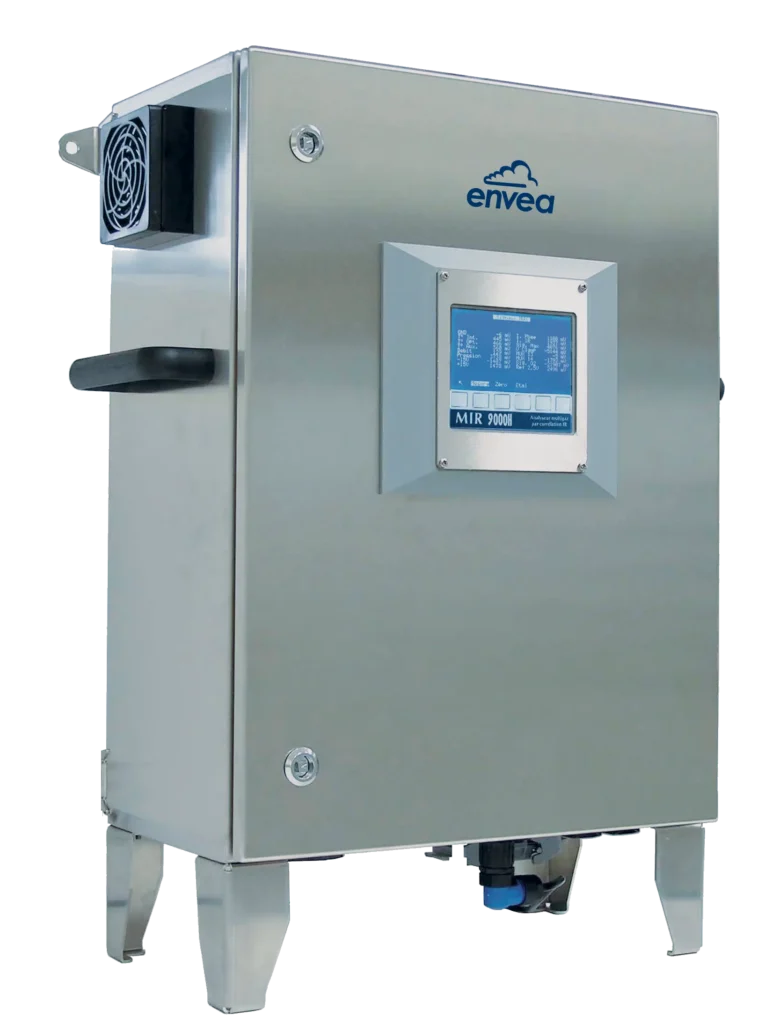

MIR9000H
- Temperature maintained at 180°C from the sampling point to the measurement cell
- QAL1-certified analyzer offering highly accurate measurements
- Suitable for measuring raw and treated flue gases in desulfurization/denitrification control processes
- Remote access to all analyzer functions
MIR-FT
- Based on FTIR technology, enabling simultaneous measurement of: HCl, HF, NH₃, NO, NO₂, N₂O, SO₂, CO, CH₄, TOC, H₂O, CO₂, O₂…
- TOC measurement possible using the Graphite 52M analyzer with an FID detector.
- MCERTS certified.
- Designed for measuring hot and humid soluble gases such as HCl, HF, NH₃, etc.
GRAPHITE 52M
- Available in two versions: GRAPHITE 52M-S: THC monitoring GRAPHITE 52M-D: Simultaneous monitoring of THC, NmVOC, and CH₄
- One of the few FID analyzers on the market with QAL1 certification, also available in a portable version for measuring: THC or simultaneous THC, nmHC, and CH₄.
- Detector heated up to 191°C for measuring high hydrocarbon concentrations.
- Complies with EN 12619 and EN 13526 standards for emissions monitoring, as well as CFR 40 1065 (US EPA) for engine hydrocarbon emissions testing.
MIR 9000p
- Lightweight (15 kg/33 lbs), compact and extra resistant transport case
- High protection (IP 44) against water splashing from any direction
- Remote access to full operation thanks to ENVEA Connect™ App and proprietary WiFi
- Warm-up time: 30 min maximum
- PREPARE REPORT ELEMENTS WHILE ON SITE
- Direct access to real-time and stored data; time frame selection to generate graphs
- All data can be saved on USB memory stick
- MAXIMIZED UPTIME OF THE ANALYZER
- Turn-up lid designed for quick access to operational modules and easy maintenance
- Modular design and Plug & Play parts (O2 probe, NOx converter, protection filter, etc.)
MIR IS
- Remote control and display functions
- Fast response time with automatic cross-interference correction
- Robust analyzer with a stainless steel enclosure
- Flow, temperature, and pressure parameters (optional)
- Simple installation (single stack entry point, mounted on or near the stack) to reduce costs
MIR 9000
- MIR-9000 multi-gas emissions analyzer with MCERTS and TÜV QAL 1 certification
- 8 simultaneous parameters: NOx, SO₂, CO, CO₂, CH₄, and N₂O, O₂, and residual H₂O – "all-in-one" case for easy transport/storage
- SEC® Box technology
- Full remote access via ENVEA Connect™ app and dedicated Wi-Fi network, notifications and alerts on smartphones, IoT-ready
- Warm-up time: maximum 30 minutes. Compatible with most sampling systems on the market, fast gas connectors, self-adaptive gas scales
MIR 9000CLD
- Multi-gas analyzer using IR-GFC (Infrared Gas Filter Correlation) technology with optional CLD (Chemiluminescence Detector), designed for measuring dry and corrosive samples.
- Automatic CO₂ correction and cross-interference compensation.
- Built-in data logger for 7 additional parameters (flow, pressure, temperature, or other analog inputs).
LAS5000XD
- LAS 5000XD utilizes Tunable Diode Laser Spectroscopy (TDLS) technology and is available in various models for measuring parameters such as NH₃ + H₂O, HF, CO + CO₂, O₂, HCl + H₂O, etc.
- Combines robustness, fast response time (1 s), and high measurement accuracy in challenging environmental conditions (certified for operation in Ex II zone).
- Offers a wide and dynamic measurement range from ppm to %.
HC51M
- Available in two versions for simultaneous and continuous measurement: THC (Total Hydrocarbons) THC / CH₄ / nmHC (Total Hydrocarbons, Methane, and Non-Methane Hydrocarbons)
- Measurement range from 0 to 1000 ppm
- Built-in data storage for one year of averaged measurements
- User-programmable ranges and averaging intervals
AC32e
- Excellent sensitivity for measuring NO, NO₂, and NOx in the range of 0-1 ppm, with optional NH₃ measurement
- Integrated communication protocol for XR® software with automatic recognition and configuration
- Operates at temperatures up to 45-50°C without the need for air conditioning
- Built-in service support: detects early signs of issues, enables preventive maintenance, identifies required services, and guides step-by-step through service operations
AF22e
- Excellent performance for SO₂ measurement in ranges of 0-10 ppm or 0-1 ppm
- Real-time calibration graph, animated synoptic display, self-diagnostics, and maintenance data screen can be viewed during device operation
- Capable of operating at temperatures up to 45-50°C without the need for air conditioning
CO12e
- Complies with EN 14626 (2012), EN 15267, 2008/50/EC, ISO 4224, 40 CFR PART 53 SUB B & SUB C standards
- Offers excellent sensitivity, signal stability, high accuracy, and repeatability of measurements
- Includes a communication protocol for XR® software with automatic recognition and configuration
- Intelligent, connected instrument with a built-in web server enabling easy full remote control and analyzer operation from any PC, tablet, or smartphone
MFW 201 Systems
- Proprietary design by Analytics for early detection of carbon monoxide (CO) in industrial facilities. Consists of a measurement cabinet and a sampling probe.
- Allows configuration of individual system mode switching times, CO concentration alarm thresholds, and sensor calibration.
- Exceeding the set CO level can trigger steam injection to prevent fires or explosions.
